Most homeowners searching for electrical and air conditioning services in Salida, CO are really solving one problem: new cooling equipment landing on an old electrical system. The AC side sets the equipment. The electrical side decides whether that equipment can actually run. Here is how the two trades split the job, what each permit covers, and what to confirm before anyone starts drilling.
The Air Conditioning Side: What Gets Installed, Repaired, and Replaced
Cooling work in the Arkansas Valley covers four jobs: install, repair, maintain, replace. Each one has an electrical component attached to it.
AC and Heat Pump Installation
A real installation starts with a load calculation, not a rule of thumb.
Salida sits near 7,000 feet. Thinner air moves less heat per cubic foot, so airflow targets and equipment capacity have to be adjusted rather than copied off a sea level sizing chart.
Common setups locally:
- Central AC paired with an existing gas furnace

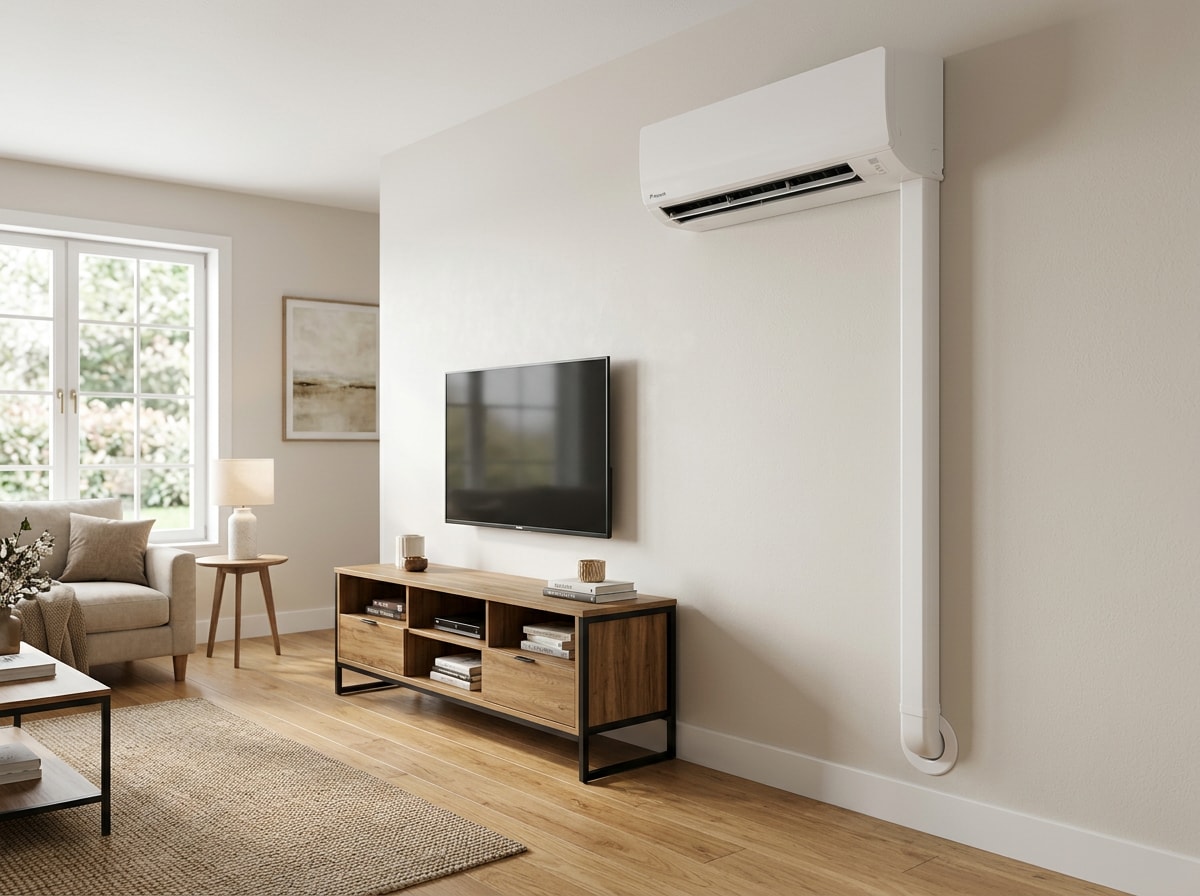

- Ductless mini splits for additions, shops, and older homes with no ductwork
- Cold climate heat pumps used as the primary system with backup heat
- Rooftop package units on light commercial buildings

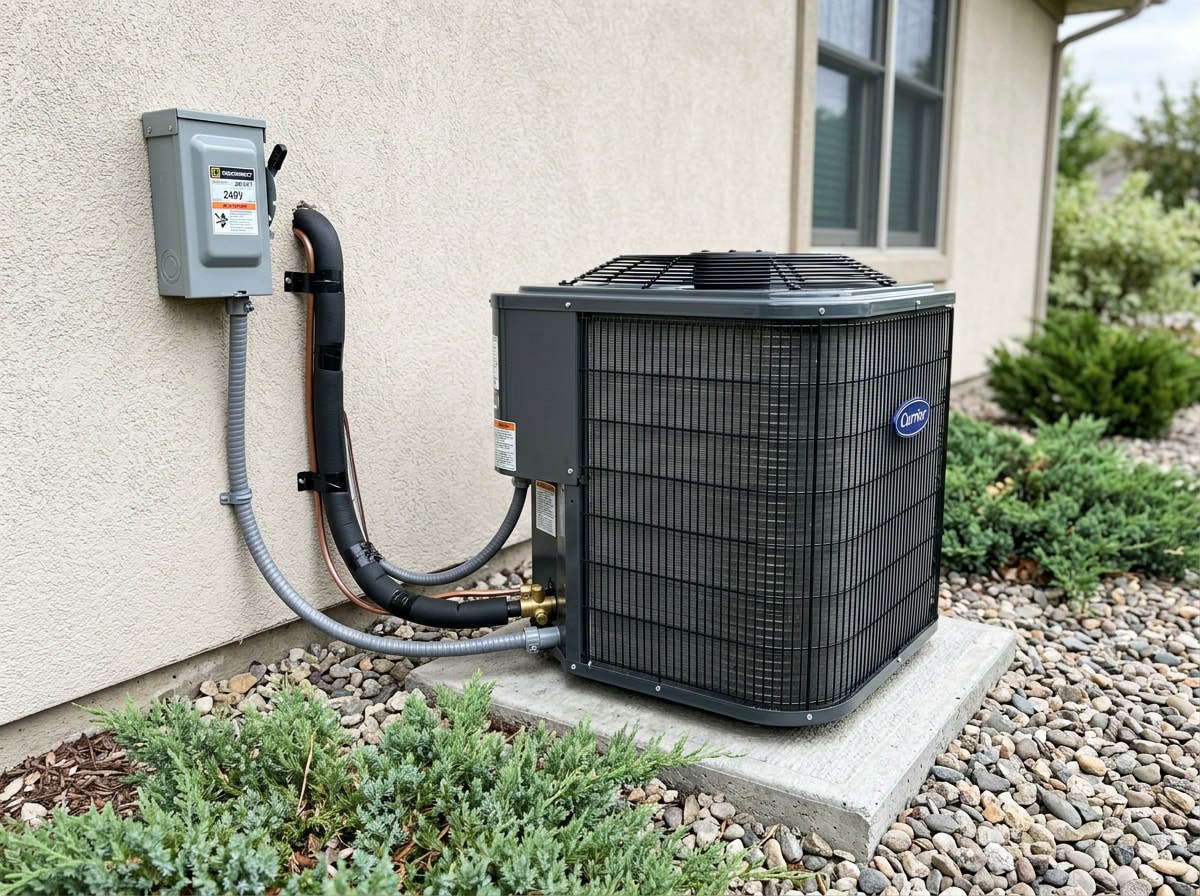

Every one of those needs a dedicated circuit, a correctly sized breaker, and a service disconnect within sight of the outdoor unit. That is electrical scope, not HVAC scope, and it is where jobs stall when only one trade was booked.
AC Repair: The Five Calls We Hear Most
Diagnostics should always start cheap and work up.
- The system runs but will not cool
- Short cycling, where the unit starts and stops every few minutes
- The breaker trips every time the compressor kicks on
- The evaporator coil freezes over
- Grinding, buzzing, or rattling from the blower or condenser
Numbers 2 and 3 are frequently electrical, not mechanical. A failed capacitor, a pitted contactor, a loose lug in the panel, or an undersized conductor on a long run will all mimic "the AC is broken." Replacing a compressor because nobody checked the voltage drop first is an expensive mistake.
Maintenance and Seasonal Timing
A tune-up worth paying for includes coil cleaning, refrigerant pressure checks, filter replacement, airflow measurement, and tightening every electrical connection in the unit.
Timing matters more than most people expect. ENERGY STAR advises scheduling the cooling system checkup in spring and the heating system checkup in fall, before contractors get busy . Duct work pays off too: sealing and insulating ducts can improve heating and cooling system efficiency by as much as 20 percent, and sometimes more , according to ENERGY STAR guidance on efficient heating and cooling . You can read the full checklist on the ENERGY STAR heating and cooling page.
Repair or Replace?
| Situation | Usual call |
|---|---|
| Unit under 10 years, single failed part | Repair |
| Heat pump or AC more than 10 years old
| Price a replacement | |
|---|---|
| Still running R-22 refrigerant | Replace |
| Failed compressor out of warranty | Replace |
| Repair quote near half the cost of new | Replace |
| Breaker trips but unit is newer | Electrical diagnostic first |
ENERGY STAR notes that correctly installed high efficiency units can cut heating and cooling costs by up to 20 percent , though real savings depend on your ducts, envelope, and how the old system was sized.
The Electrical Side: Circuits, Capacity, and Old Wiring
This is the half that decides your install date.
Dedicated Circuits and Disconnects
Condensers, air handlers, and mini splits each need their own circuit sized to the equipment nameplate, not to a guess. The nameplate lists minimum circuit ampacity and maximum overcurrent protection. Those two numbers drive wire size and breaker size.
Add the outdoor disconnect, a whip, bonding, and a GFCI receptacle within reach of the unit for service, and you have a half day of licensed electrical work attached to a "simple" AC swap.
Our team handles this scope through our electrician services, including new circuits during electrical remodeling and whole house wiring on new residential electrical construction.

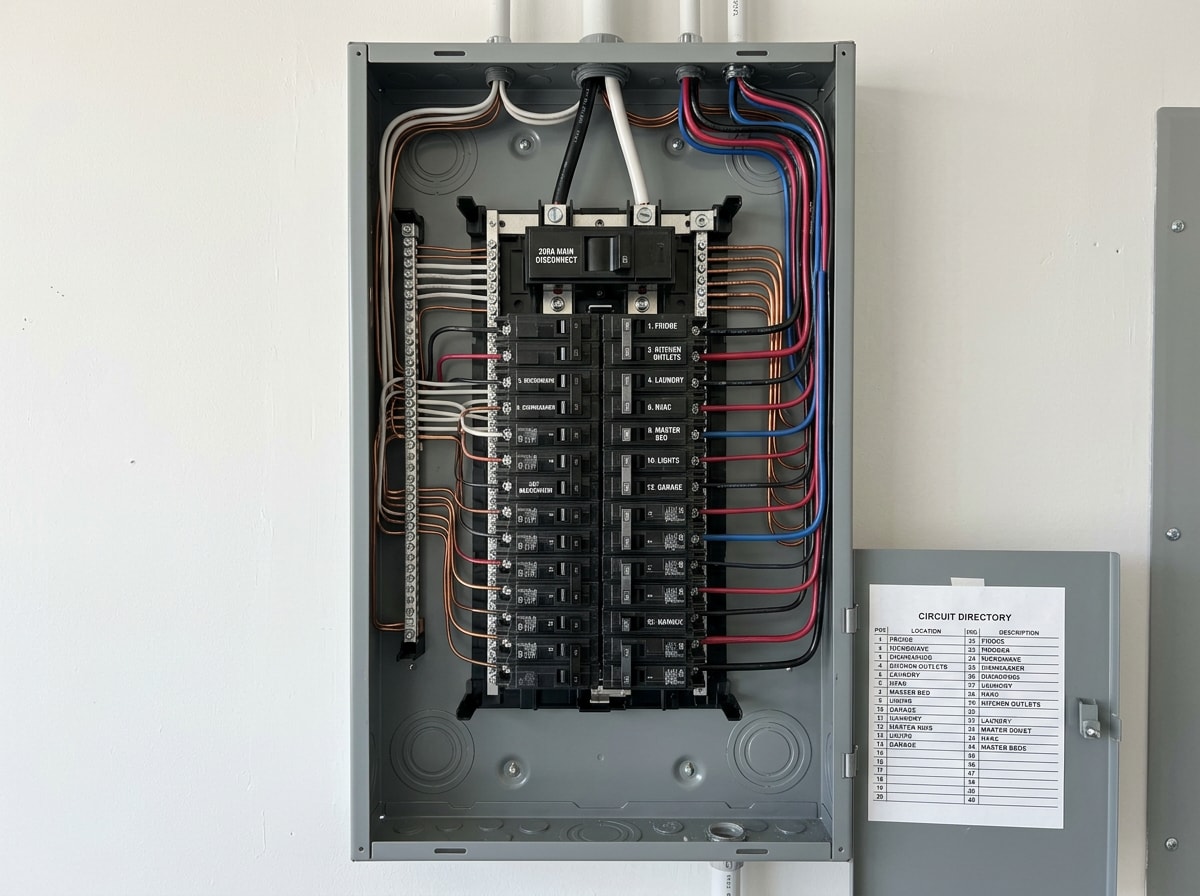

Panel Capacity and the 200 Amp Question
Here is the moment most Salida projects hit a wall.
- 100A service: furnace, standard AC, range, dryer, water heater. Very little headroom left.
- 200A service: room for a heat pump, a Level 2 EV charger, a hot tub, or a shop subpanel.
A home adding both a heat pump and a Level 2 charger will often fail its load calculation at 100A. At that point the electrical service upgrade is not an upsell, it is the condition of the install.
The sequence runs: load calculation, permit, utility coordination for the disconnect, meter and panel swap, inspection, reconnect.
Older Wiring in Older Homes
Downtown Salida has plenty of housing stock with knob and tube runs, ungrounded two wire circuits, and cloth insulation that crumbles when it is moved. Insurers and lenders flag both.
Two numbers from the US Fire Administration are worth knowing before you add load to legacy wiring. One and two family dwellings accounted for 83 percent of residential building electrical fires reported to NFIRS , and electrical fire incidence peaked in January at 12 percent of the annual total , per the agency's residential building electrical fires report.
That January peak is the part most people get backwards. Cooling season is when the AC fails. Heating season is when the wiring behind it gets tested hardest.
Permits in Salida: Two Desks, and They Are Separate
This is the piece almost no service page explains, and it is where DIY timelines fall apart.
Salida contracts with the Chaffee County Building Department to administer all building permits inside the city. Permits are submitted to the City first for zoning compliance and fire safety review, then forwarded to the County for review and administration.
Code versions matter for both trades. The City adopted the 2021 International Codes for Building, Residential, Existing Buildings, Plumbing, Mechanical, Energy Conservation and Fuel Gas, along with the 2021 IECC and the 2021 National Electrical Code. Details are posted on the City of Salida building permit review page.
| Work | Permit type | Who normally pulls it |
|---|---|---|
| New AC or heat pump equipment | Mechanical | HVAC contractor |
| Dedicated circuit, disconnect, whip | Electrical | Licensed electrical contractor |
| Panel or service upgrade | Electrical | Licensed electrical contractor |
| Addition or remodel housing the equipment | Building | General contractor |
Two practical takeaways. First, mechanical and electrical permits are issued separately, so one permit on the job does not cover the other trade's work. Second, build city review time into your schedule. An AC changeout booked for Friday does not move faster because the equipment already shipped.
Ready to get the electrical scope priced before your equipment arrives? Call For All Your Electrical Needs!
Emergency Calls: What Counts and What To Do First
Shut it down before you call if you have any of these:
- Burning or hot plastic smell at a vent, panel, or outdoor unit
- Breaker that trips, resets, then trips again
- Scorch marks or discoloration at a receptacle or disconnect
- Water pooling under the air handler
- Total heat loss in winter
Kill power at the thermostat and at the breaker, then call. Do not keep resetting the breaker. That breaker is doing its job.
For a deeper walkthrough on after-hours response and pricing, see our guide to how HVAC and electrical scopes get divided on service calls.
Planning Costs for the Electrical Half of an AC Job
These are planning ranges for budgeting conversations, not quotes. Actual pricing depends on panel location, conductor run length, wall construction, and inspection scheduling. Ask for a written scope before you commit.
| Electrical scope | Typical planning range |
|---|---|
| New dedicated 240V circuit for a condenser | $400 to $1,200 |
| Outdoor disconnect and whip | $150 to $400 |
| Mini split circuit plus service receptacle | $450 to $1,100 |
| Panel swap, 100A to 200A | $2,000 to $4,500 |
| Full service upgrade with mast and meter relocation | $3,500 to $7,000 |
Long conductor runs, rock, crawlspaces, and detached structures push those numbers up fast. Any contractor who prices a panel upgrade over the phone without seeing the meter has not priced your job.
How To Vet a Contractor for Both Trades
Colorado licenses electricians at the state level through the DORA Electrical Board, with tiers for Master Electrician, Journeyman Wireman, Residential Wireman, and Electrical Inspector.
One detail catches people out. Colorado electrical licenses are issued to individual tradespeople, not to companies, so you should verify that the qualifying individual on the crew holds an active license rather than relying on a company name alone. Run the name or license number through the state's DORA license verification portal before work starts.
Then ask these five questions:
- Who holds the electrical license on this job, and what is the number?
- Which permits are you pulling, and which am I responsible for?
- Is the load calculation included, and can I see it?
- Who coordinates the utility disconnect on a panel swap?
- Is the inspection scheduled before or after you invoice?
If the answers are vague on permits, that is the whole audit right there.
Residential and Commercial Scope Around Salida
Homes. Whole house rewires, panel upgrades, dedicated equipment circuits, smart thermostat wiring, and combined visits that pair an equipment circuit with the install day. One job we scheduled last season put a mini split circuit, disconnect, and service receptacle in on the same morning the equipment was set, which kept the homeowner from paying two mobilization fees.
Light commercial. Rooftop unit circuits, three phase service, equipment disconnects, and lighting retrofits timed around business hours. See commercial electrical construction and commercial lighting installation.
Solar owners. If you have panels or are planning them, cooling load changes your production math. Solar wiring and electrical integration and panel capacity need to be looked at together, not in sequence.
We work across Salida, Buena Vista, Canon City, and Gunnison County, and you can see the full service lineup on our home page.
FAQ
Do I need a permit to replace an AC unit in Salida, CO?
Yes in nearly all cases. Permits go to the City for zoning and fire safety review, then to the Chaffee County Building Department for administration. Mechanical and electrical permits are issued separately, so confirm which contractor is pulling which.
Does an air conditioner need its own circuit?
Yes. Condensers, air handlers, and mini splits require a dedicated circuit sized from the equipment nameplate, plus a disconnect within sight of the outdoor unit.
Can one company handle both the electrical and the air conditioning work?
Some can. More often the HVAC contractor sets and charges the equipment while a licensed electrical contractor runs the circuit, disconnect, and any panel work. Either arrangement works as long as both permits are accounted for and both trades are licensed.
Is a 100 amp panel enough for a heat pump?
Sometimes, but frequently not once an EV charger, hot tub, or electric range is in the mix. A load calculation gives you the real answer. If it fails, a 200 amp service upgrade comes first.
Do I need an electrician to replace a thermostat?
For a like for like low voltage swap, usually no. If the new thermostat needs a C wire, a new run, or a transformer change, call a licensed electrician.
How long does an AC or heat pump installation take?
Most single system residential installs run one to two days of field work. The schedule is usually driven by permit review and inspection timing, not by the equipment.
When should I schedule maintenance in Chaffee County?
Cooling in spring, heating in fall. Booking either one during a heat wave or a cold snap means waiting behind emergency calls.
What heating work is common at this elevation?
Furnace service, boiler work, cold climate heat pumps, and backup heat strips. Any electric heat addition should be checked against your panel capacity before purchase.
How do I confirm an electrician is licensed in Colorado?
Search the individual's name or license number in the state license lookup. Licenses belong to people, not companies.
Next Step
Get the electrical scope defined before the equipment ships. A load calculation, a circuit plan, and a permit answer take one visit, and they prevent the two week delay that happens when a condenser is sitting on a pad with no circuit to feed it.
Call For All Your Electrical Needs!
Written by the licensed electricians at Lake Fork Electric, who hold current Colorado state electrical credentials and work daily under Chaffee County inspection. Questions about your panel, your circuit, or your permit path can go straight to our team through the contact page.
